JET 25

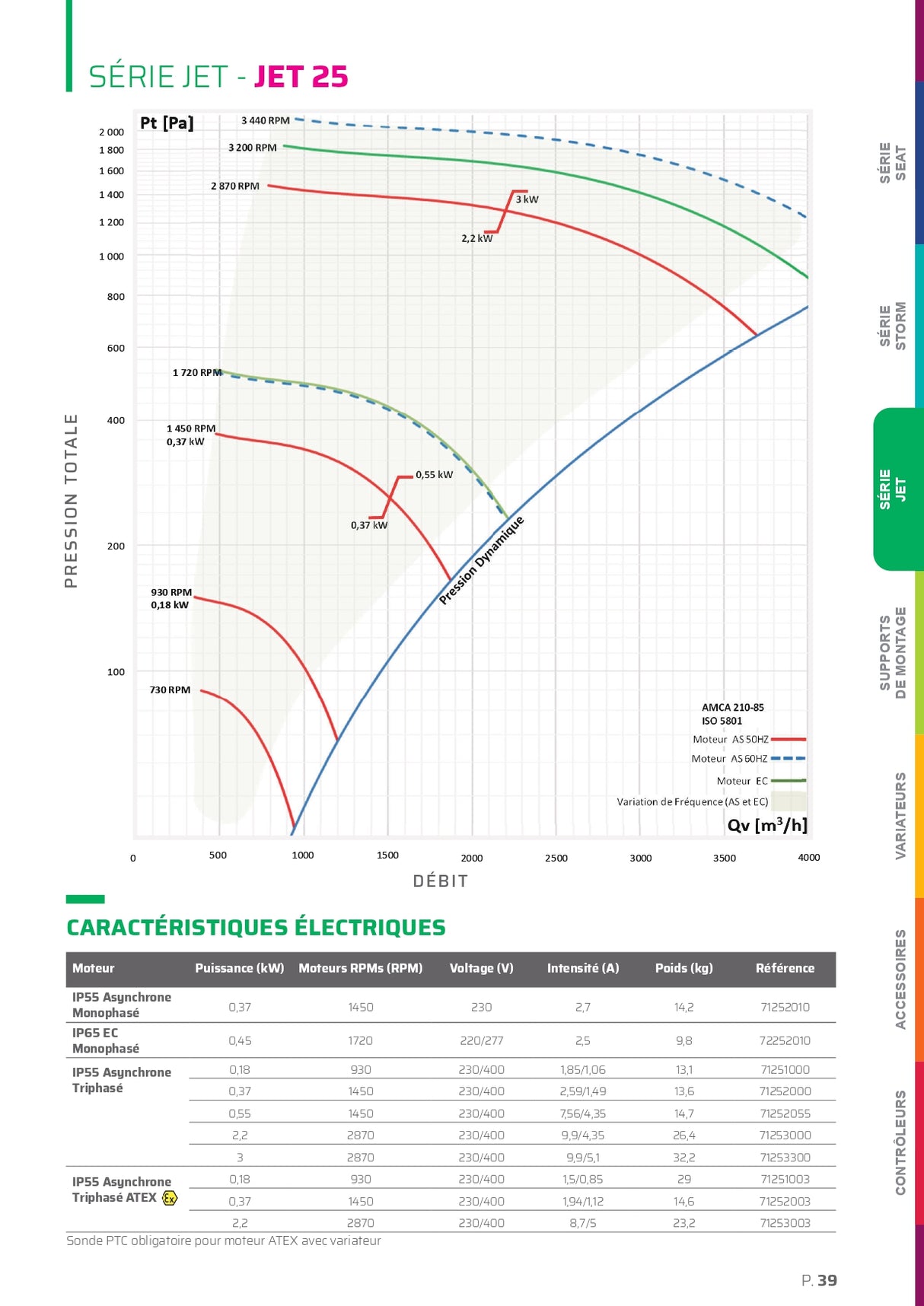

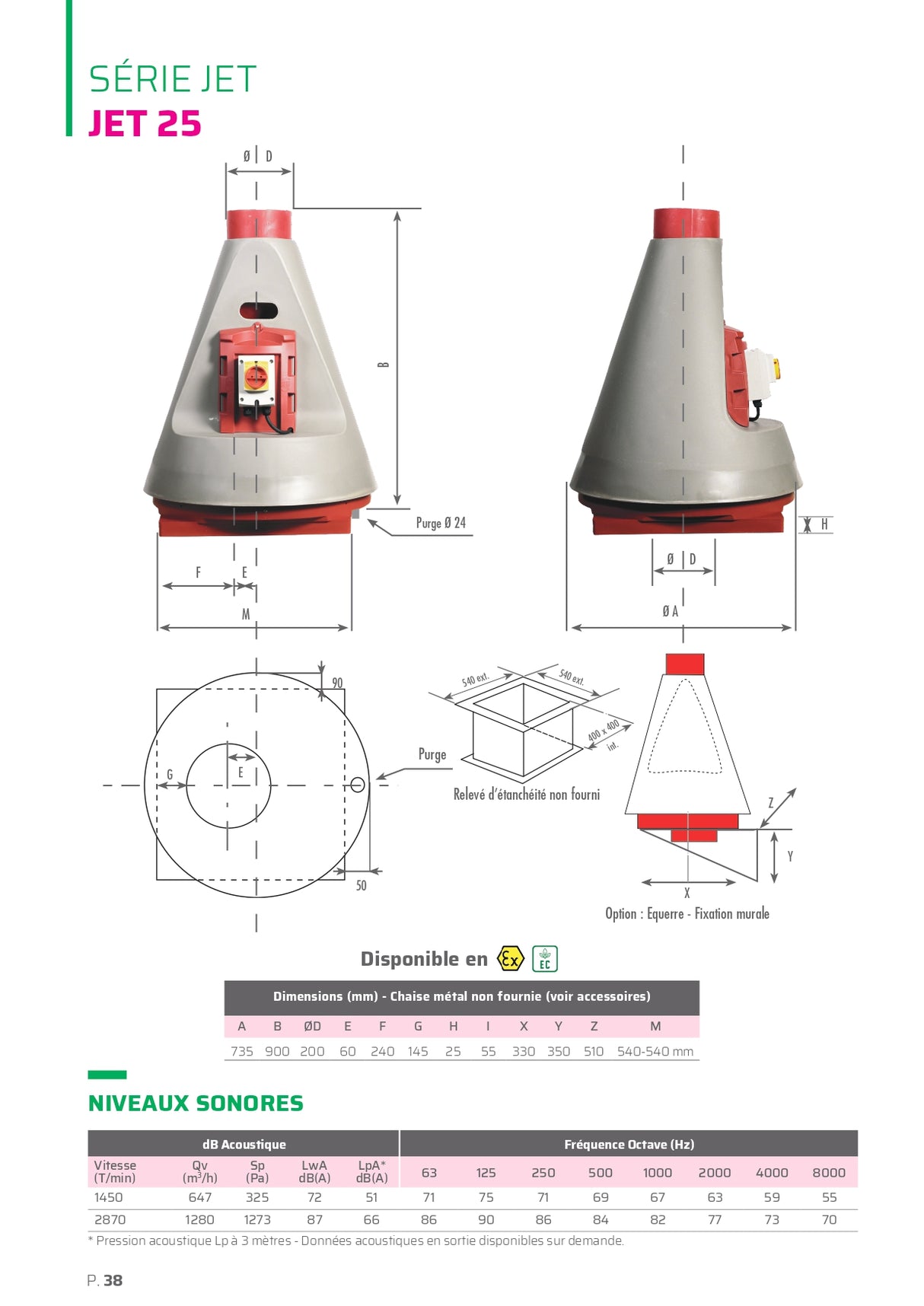

Specifications JET 25 (pdf)

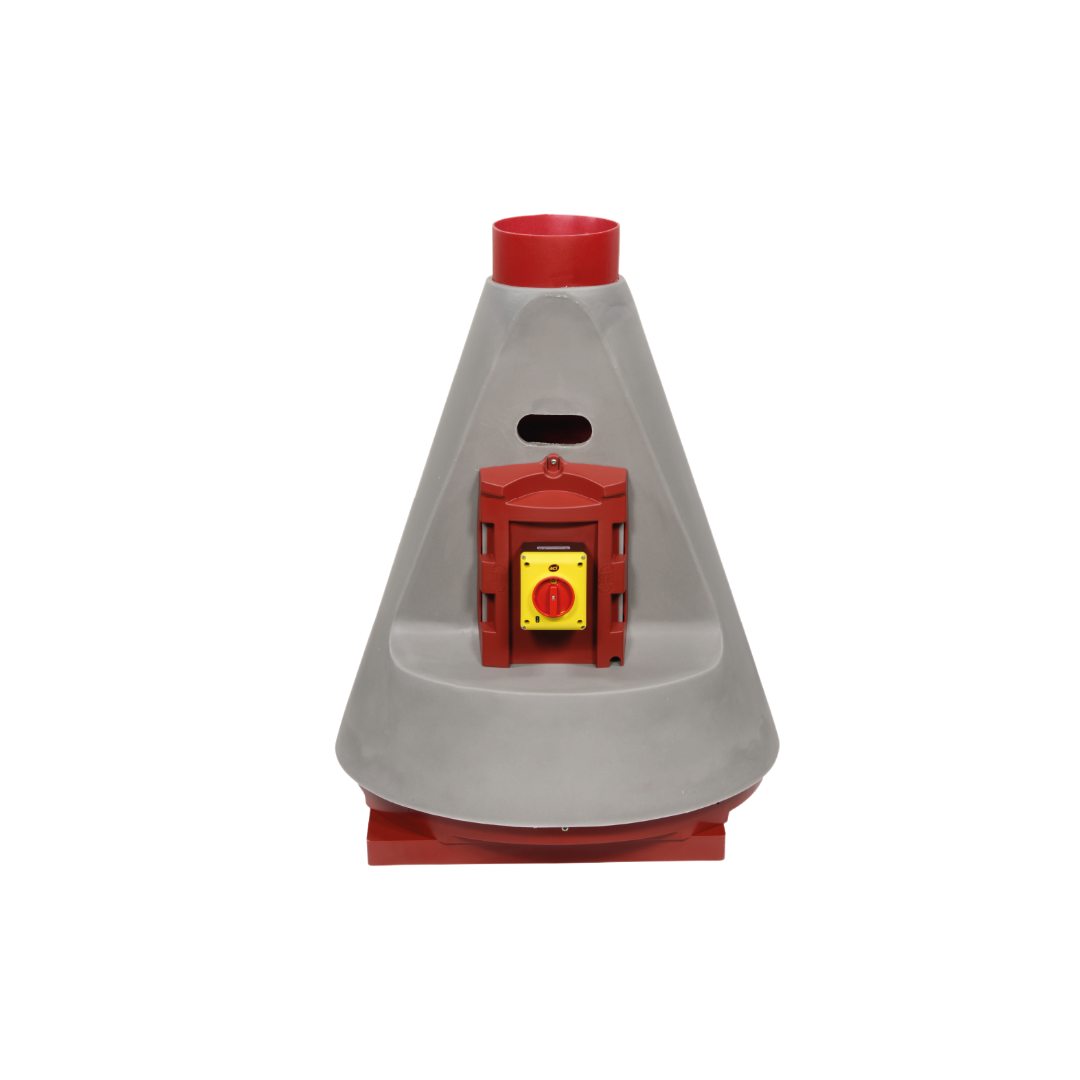

Inline polypropylene centrifugal fan

 The JET 25 from SEAT Ventilation is a polypropylene centrifugal fan suitable for the extraction of corrosive gases with a maximum air flow rate of 3500 m³ /h and a diameter of 200mm in suction and discharge.

In direct drive, the turbine is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors and with a frequency converter to meet the requirements of your installations.

For additional information and advice on specific applications, please contact our technical department.

Available in ATEX Zone 2 version only with three-phase motors.

TECHNICAL CHARACTERISTICS

• Air flow : 500-3500m³/h
• Total pressure : 100-600Pa
• Sound level (A): RPM 1150=70dB, RPM 1725-81dB, RPM 3450=113dB
• Aspiration : diameter 200mm
• Material : polypropylene
• Training : direct
• Engine : single-phase 115/230V or three-phase 230/460V
• Frequency : 50Hz or 60Hz with frequency converter

► Find the right product for your project even more easily, thanks to our online selection software:

ZEPHYR

SEAT Ventilation's JET range features centrifugal fans designed for in-line installation. The JET motor is enclosed in a housing and protected from corrosive flow and the elements.

Their performance ranges from 200 to 3500PT (pa) static pressure and from 80 to 1400m³/h. The integrated waterproof cover and the disconnector make for an excellent installation package.

With a vertical discharge, this fan is typically mounted on a roof or wall (vertical or horizontal). JET fans are often used in swimming pools, water parks, municipal aquatics facilities, marine and saltwater environments, chemical/chlorine storage aisles, booster tank systems, closed tube slide ventilation systems, underground equipment/chemical vaults, fitness facilities, and more.

The JET range is manufactured from recyclable, UV-resistant polypropylene and complies with ISO 9001-2008 standards.
