Centrifugal fan made of anti-corrosion polypropylene

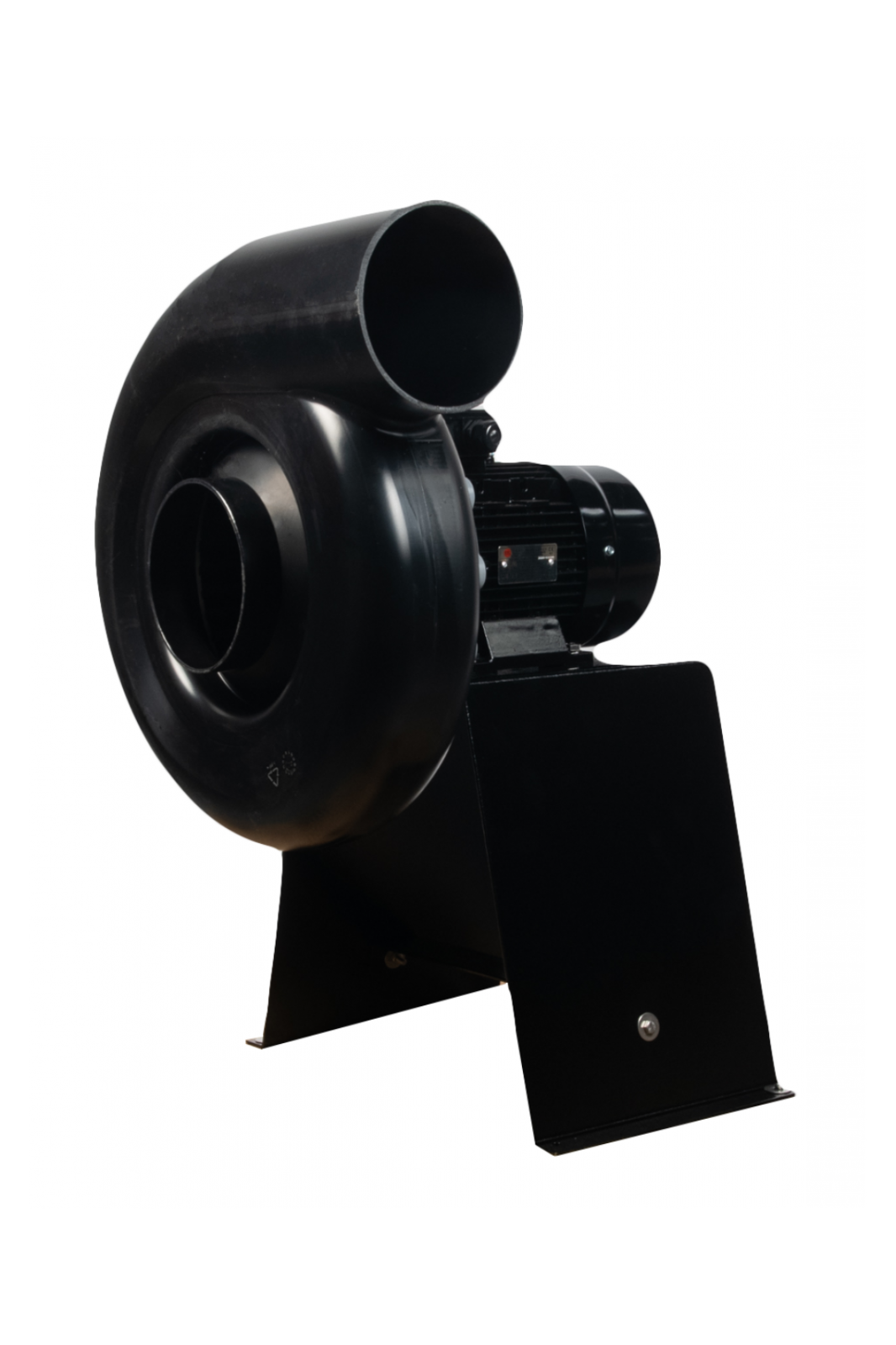

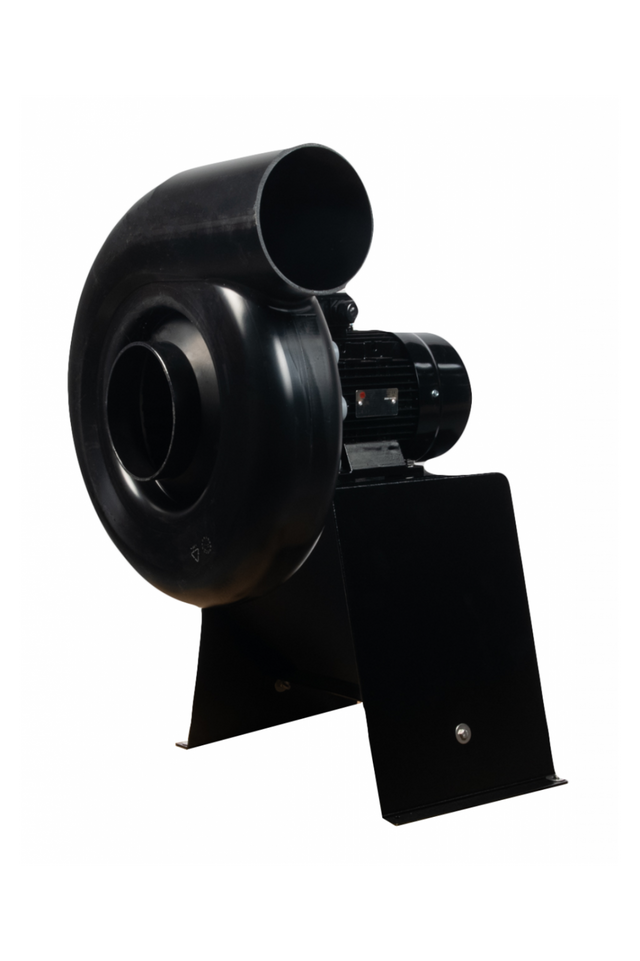

The STORM 18 from SEAT Ventilation is a polypropylene centrifugal fan suitable for the extraction of corrosive gases with a maximum air flow rate of 5000 m³/h and a diameter of 200mm in both suction and discharge.

In direct drive, the impeller is attached directly to the motor shaft.

It can be supplied with single-phase or three-phase motors and with a frequency converter to meet the requirements of your installations.

High pressure fan ideal for applications such as storage cabinets, extraction arms, washing towers, sensors or filtration boxes.

Available in ATEX Zone 2 version, only with three-phase motors.

In order to implement appropriate organizational measures, each company must identify the areas of the workplace where explosive atmospheres may form.

This ATEX zoning makes it possible to ensure the suitability of all devices, whether electrical or not.

For your safety and that of your employees, SEAT Ventilation has created a range of fans specifically designed for the extraction of corrosive and toxic gases in laboratories, water treatment, swimming pools, chemical, pharmaceutical, oil industries, etc.

TECHNICAL CHARACTERISTICS

• Airflow: up to 5000 m³/h
• Static pressure: up to 3227 Pa (7.5 kW motor, 2870 rpm)
• Suction/discharge: diameter 200mm
• Material: polypropylene
• Drive: direct
• Motor: three-phase asynchronous IP55, 7.5 kW (400/690V), available in 50Hz or 60Hz with frequency converter

 ► Find the right product for your project even more easily, thanks to our online selection software:

ZEPHYR
