Centrifugal extraction fan made of anti-corrosion polypropylene

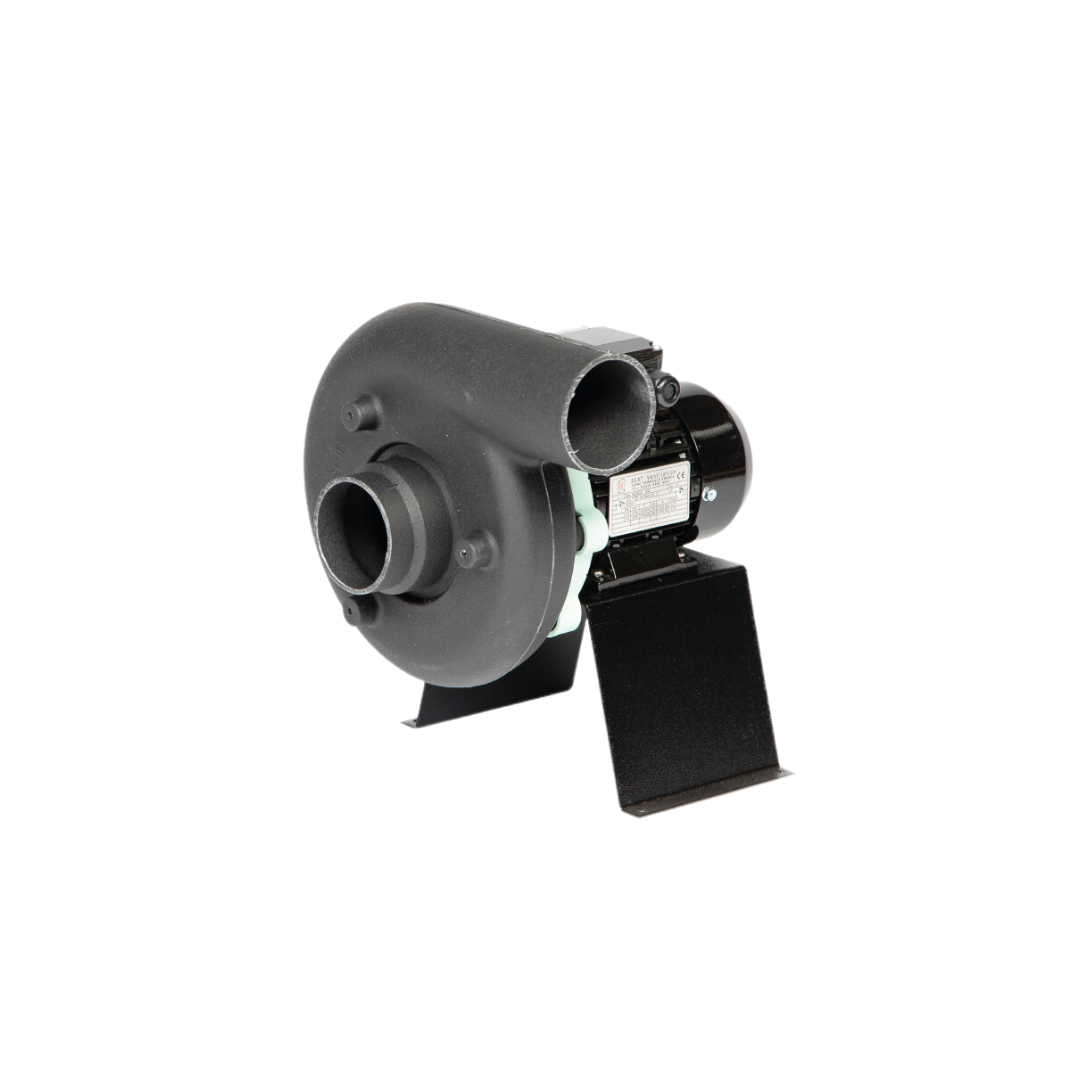

 The STORM 10 from SEAT Ventilation is a polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum air flow rate of 200m³/h and an inlet and outlet dimension of 75mm.

High pressure fans for applications such as storage cabinets, washing towers, collectors, storage boxes, filter boxes and fume collection arms.

Available in ATEX Zone 2 version only with three-phase motors.

DESCRIPTION

• Air flow: 25-200 m³/h
• Total pressure: 50-600 Pa
• Inlet: 75mm
• Material: polypropylene
• Direct motor drive
• EC motor: single-phase with external rotor or three-phase
• Frequency: 50 Hz or 60 Hz, frequency inverter optional
